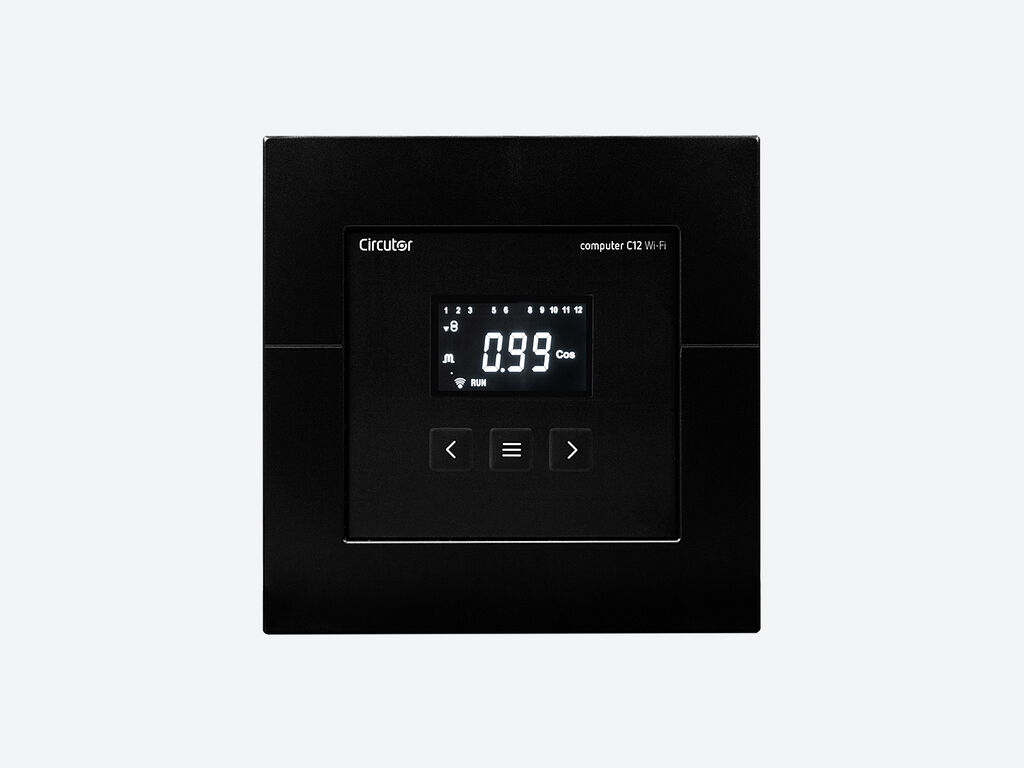

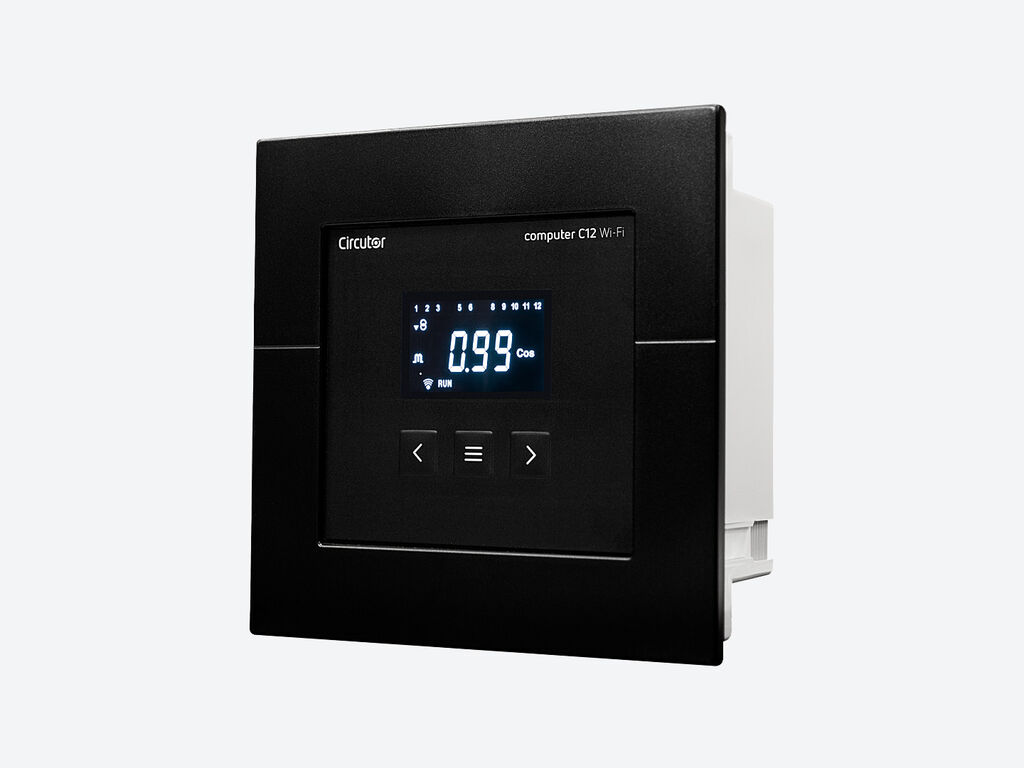

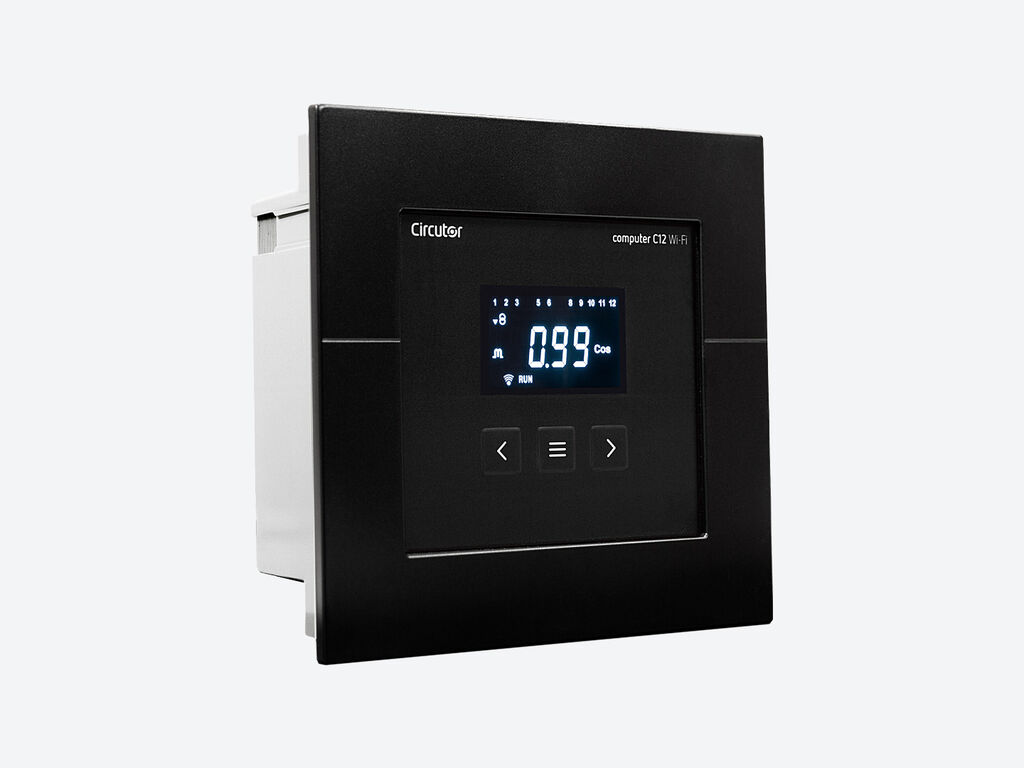

The Computer C Wi-Fi series of regulators is designed for simple and effective regulation. Its high-contrast display can show up to 27 electrical parameters.
Its features are key to having a robust and reliable system, as well as to obtaining the necessary warnings and alarms for its proper monitoring and control:
- Up to 12 fully configurable alarms.
- Electrical parameters viewable online via Wi-Fi connectivity.
- Plug & Play.
- For easier preventive maintenance
Applications
The Computer C Wi-Fi is the ideal regulator to compensate balanced installations, where ease of programming, robustness, precision, and maximum compensation control are required.
Its simple and intuitive programming system facilitates user installation and maintenance.
SPECIFICATIONS
AC power supply
Nominal voltage
400 V ~ (±10 %)
Frequency
50 … 60 Hz
Consumption
13 VA
Installation category
CAT III 300 V
Current measurement circuit
Nominal current (In)
… / 5 A
Phase current measuring range
0.05 … 5A
Connection
Connect preferably to phase L1
Permanent overload
+ 20%
Measurement accuracy
Phase voltage measurement
1%
Phase current measurement
1%
Phase angle φ
2 % ± 1 digit
Digital relay outputs
Quantity
12 + 1 (Alarm)
Maximum open contact voltage
250 V~
Maximum current
1 A~
Electrical life (at maximum load)
1×105 cycles
Mechanical life
1×107 cycles
Maximum switching capacity
250 W
Wireless communication
Technology / Type
Wi-Fi
Band
2,4 GHz (IEEE 802.11 b / g , IEEE 802.11 n (up 150 Mbps)
User interface
Resolution of the display
3 digits
Keyboard
3 keys
Environmental characteristics
Working temperature
-20 … +60 ºC
Storage temperature
-20 … +70 ºC
Relative humidity (without condensation)
5 … 95 %
Protection class
IP 30 / Front Panel: IP 40 IK 08
Mechanical characteristics
Envelope
Plastic V0 self-extinguishing
Fastening
Panel
Weight (kg)
0,5
Size (mm) width x height x depth
144 x 144 x 54.85 (mm)
Standards
Standards
IEC 61010, IEC 61000-2-30, IEC 61000-6-4, IEC 61000-6-2
Electrical safety, Contamination level/class
Pollution resistance 2
Electrical safety, Maximum height (m)
2000
Electrical safety
Insulation
Double-insulated electric shock protection class II (IEC 61010-1)
DIMENSIONS
CONNECTIONS
