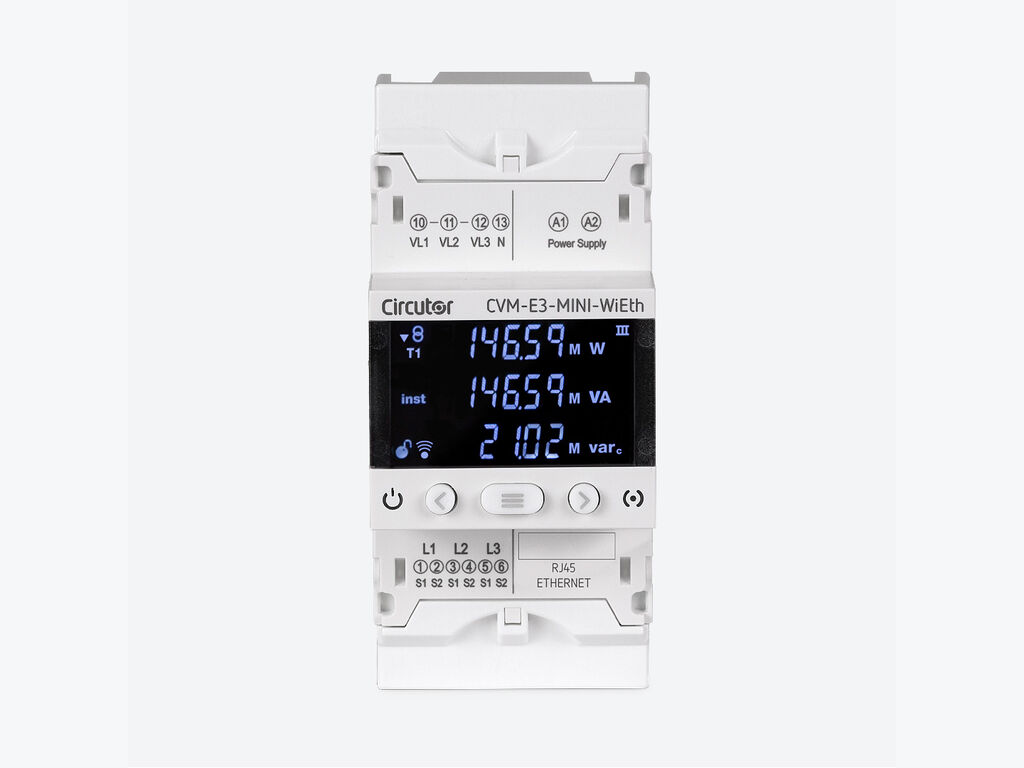

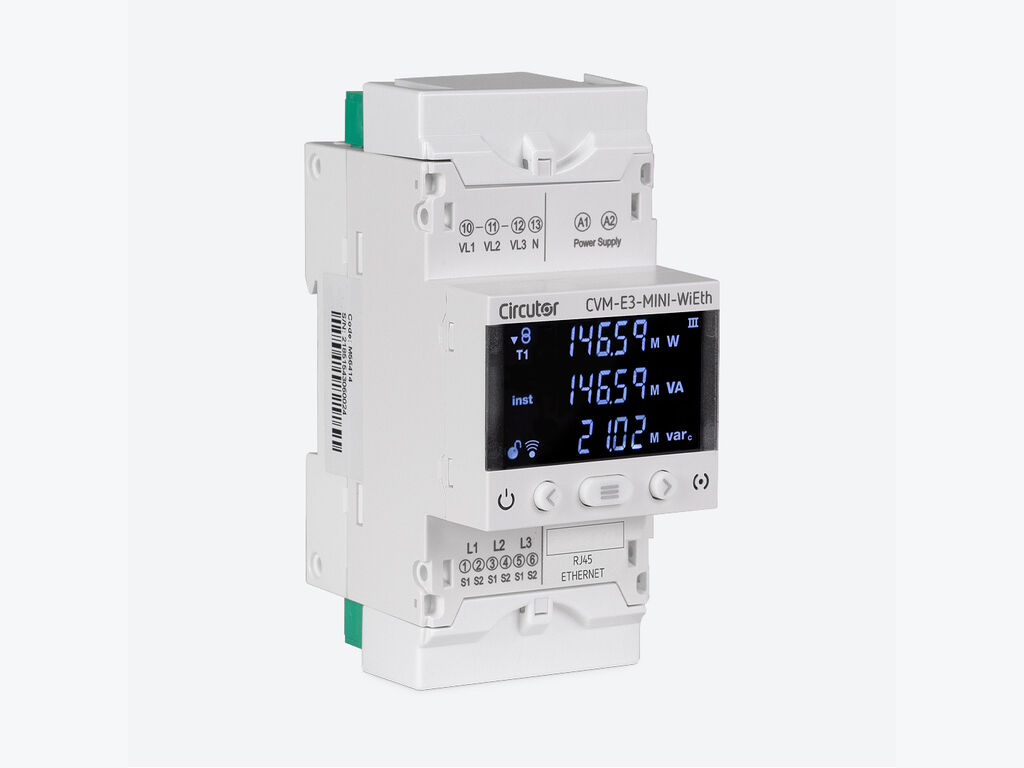

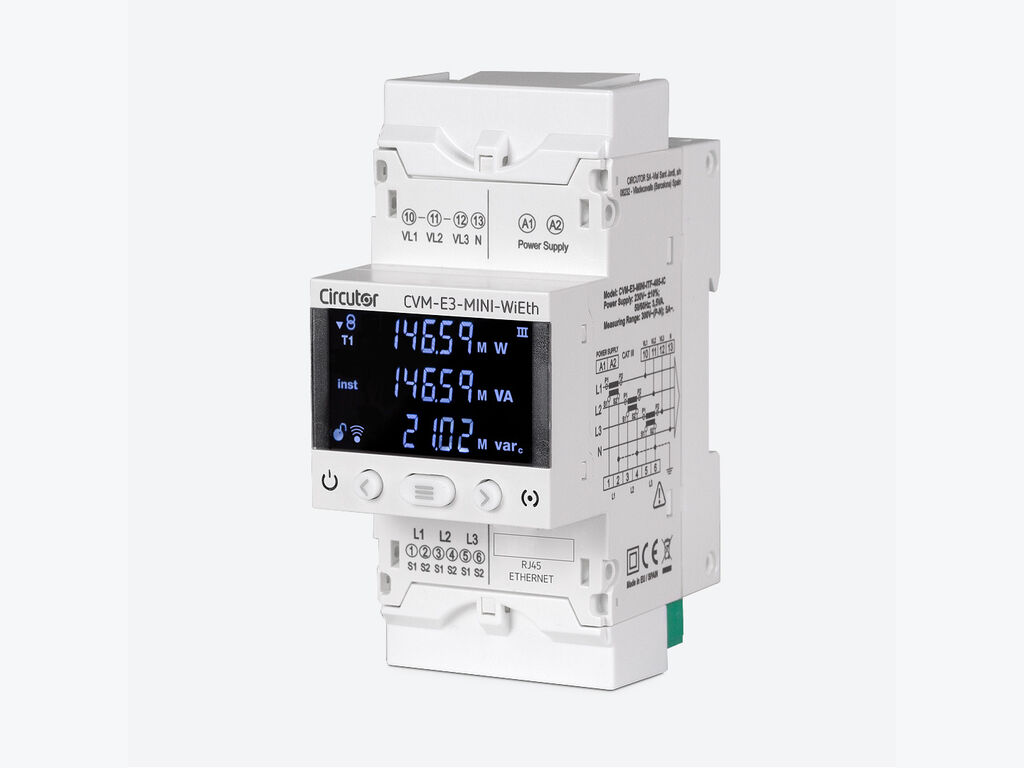

Three-phase electrical network analyser (balanced and unbalanced) for DIN rail mounting and panel option with 72×72 adapter, with measurements in 4 quadrants.
Other features are:
- Current measurement with ITF measuring transformers …/5 A,…/1A, MC transformers …/250 mA and FLEX-MAG clamps, according to type
- With ITF technology: ITF galvanic insulation protection
- DIN rail format with only 3 modules
- High contrast backlit display
- 72×72 mm panel mounting with front adapter
- Ethernet, Wi-Fi communications
- Configuration of communications on the App (MyConfig) and on the website.
- Sealable terminal cover
- Display of voltage and current harmonics up to 31º
Applications
- Control application in switchboards and low and medium voltage connections where there is a need for an analyser on the DIN rail.
- Instantaneous data capture, maximum and minimum levels of electrical parameters measured.
- Installation with Ethernet cable (RJ-45)
- Installation without the need for communications wiring in facilities that have a Wi-Fi network.

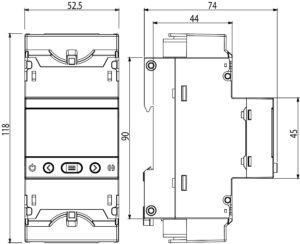

Dimensions
