TCM-T250 Energy analyzer

This series are of high performance cost ratio. They need less project cost and field programming on spot for power grid grouping with different PLC and industrial control PC communication software.
• V1, V2, V3, V12, V23, V31 Ph-Ph and Ph-N.
• I1, I2, I3, I∑: Each phase and total current values.
• PF1, PF2, PF3, values of each phase.
• Cosᶲ1, Cosᶲ2, Cosᶲ3: Cosᶲ values of each phase.
• F1 Frequency values.
• P1, P2, P3, P∑: Active and total Kwh active values.
• Q1, Q2, Q3: Reactive and total reactive Power
• S1, S2, S3, S∑: Visible power
• VArh: Inductive and capacitive energy values.
• THDV-L1, THDV-L2, THDV-3, THDV-L∑. Up to 51st
• Compatible for LV and MV Network
• THDI-L1, THDI-L2, THDI-3, THDI-L∑: Up to 51st order
• Pulses Outputs
• 4 Digital Inputs, 2 Relays outputs,
• Analogue 4…20mA Programmable Output
• MDI Measurement., Import and Export Energy,
• Bi-directional energy Energy metering
• Sequence component
• Ethernet Port
• Voltage and current unbalance Input and output

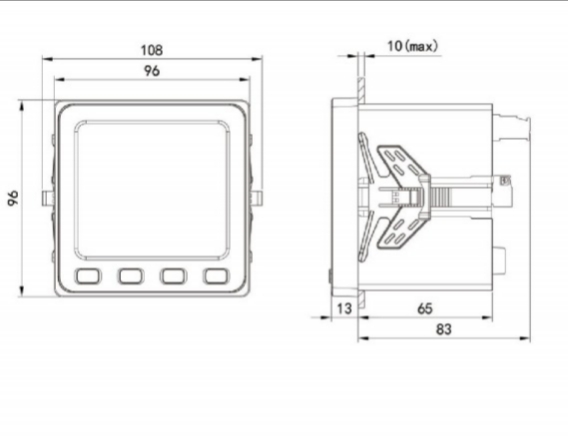

• LCD Panel size(96×96 and width 96 mm) .
• Power Supply AC/DC（80～270）V
• 0～9999kV Primary side voltage rating Secondary voltage 0～690V
• Primary current 0～9999kA Secondary current 0~6A
• Generator or 4 other Tariffs, total Kwh
• RS-485 communication interface, MODBUS RTU

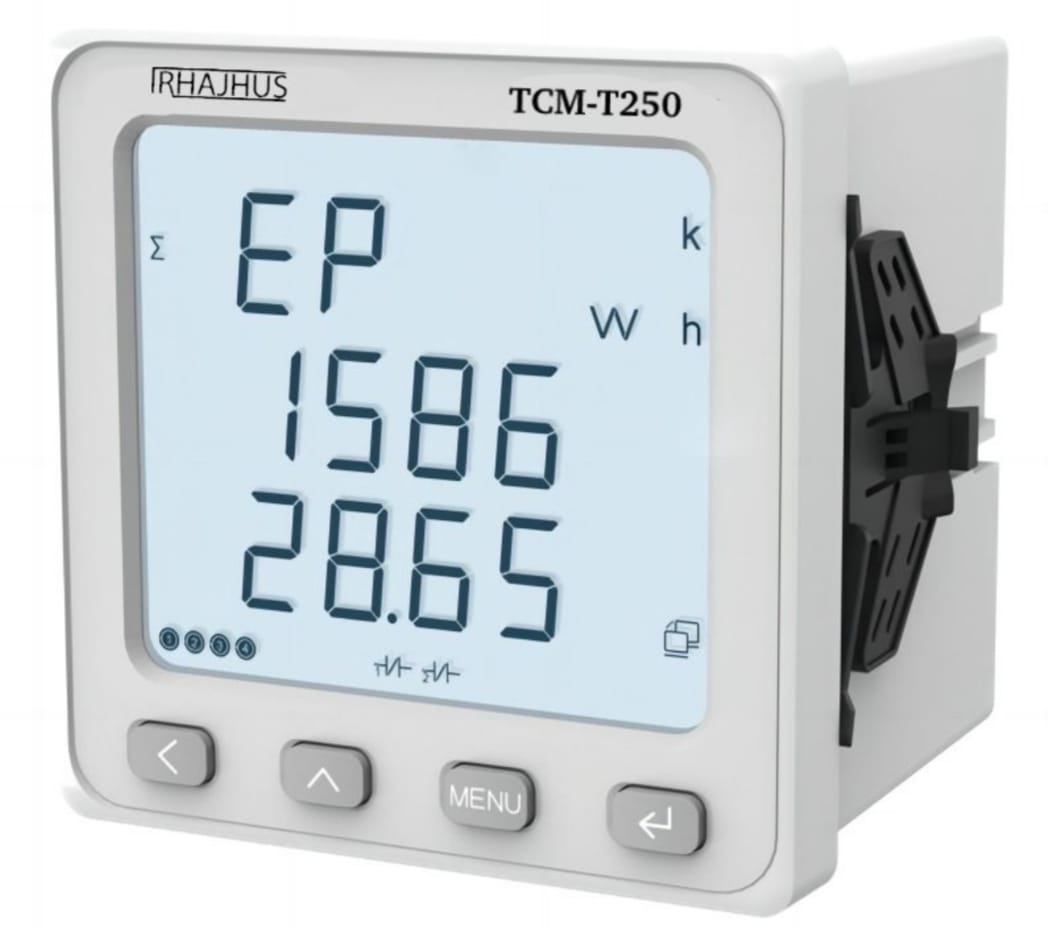

TCM-T250 Energy Power Analyzer Make IRHAJHUS
